RP1455C | Hammond

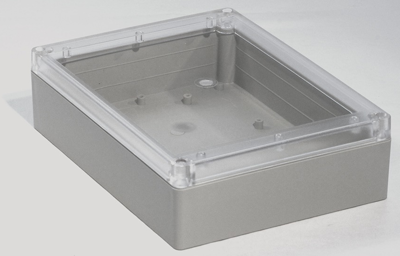

ABS enclosure, (L x W x H) 220 x 165 x 60 mm, light gray (RAL 7035), IP65, RP1455C
Unit Price (€ / pc.)
27.1439 € *
Available in 7 Days: 53 pcs. - if ordered today
Total Price:
27.14 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1439 €
10 pcs.
25.7754 €
50 pcs.
23.2050 €
100 pcs.
20.8726 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, RP1455C, Hammond
FEATURES
- Ideally suited for mounting printed circuit boards or components
- Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust, and water
- Rubber gasket is included and must be field installed
- Lid is secured with self captivating M3.5 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly)
Technical Data
- Material: ABS
- Colour: grey
- Degree of protection IP: IP65
Technical specifications
| Filter | Property | Value |
|---|---|---|
| RAL number | 7035 | |
| Length | 220 mm | |
| Height | 60 mm | |
| Colour | light gray | |
| Material | ABS | |
| Width | 165 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
