HYPB4SS | Hammond

Stainless steel push button enclosure, (L x W x H) 102 x 178 x 254 mm, metal, IP69/IP69K, HYPB4SS

Order No.: 50H3089
MPN:
HYPB4SS
Series: HYPB

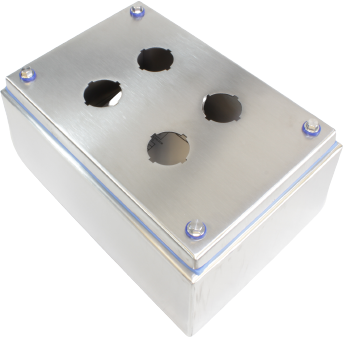

HYPB4SS Hammond General Purpose Enclosures Image 1

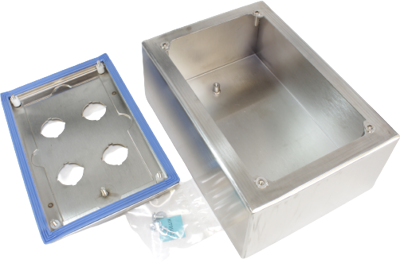

HYPB4SS Hammond General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
1,065.3356 € *
Available in 7 Days: 2 pcs. - if ordered today
Total Price:
1,065.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,065.3356 €

Stainless steel hygienic pushbutton enclosure, HYPB4SS, Hammond

Features

  • Formed 304 stainless steel
  • Sloped 3° on all 4 sides
  • Continuously welded seams ground smooth
  • Hex head screw cover can be completely removed for modifications
  • Silicone gasket mounts around entire door edge allowing for efficient cleaning in hygienic environments
  • Gasket can be easily removed and re-installed for cleaning or replacement
  • Bonding stud provided on door and grounding stud installed in enclosure
Technical specifications
Colour metal
Degree of protection (IP) IP69/IP69K
Width 178 mm
Height 254 mm
Length 102 mm
Material stainless steel
Logistics
Country of origin CA
Customs tariff number 73269098
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
