HYPB1SS | Hammond

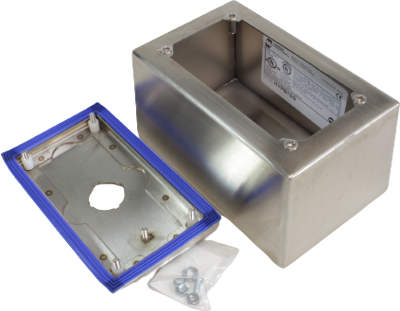

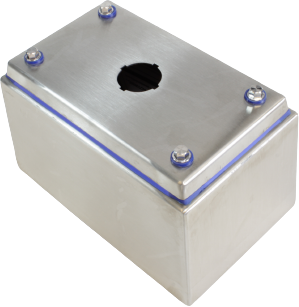

Stainless steel push button enclosure, (L x W x H) 102 x 127 x 203 mm, metal, IP69/IP69K, HYPB1SS
Unit Price (€ / pc.)
848.351 € *
Available: 0 pcs.
Available in 7 Days: 3 pcs.
Leadtime: 2 Weeks **
Stainless steel hygienic pushbutton enclosure, HYPB1SS, Hammond
Features
- Formed 304 stainless steel
- Sloped 3° on all 4 sides
- Continuously welded seams ground smooth
- Hex head screw cover can be completely removed for modifications
- Silicone gasket mounts around entire door edge allowing for efficient cleaning in hygienic environments
- Gasket can be easily removed and re-installed for cleaning or replacement
- Bonding stud provided on door and grounding stud installed in enclosure
Technical specifications
| Width | 127 mm | |
| Colour | metall | |
| Height | 203 mm | |
| Length | 102 mm | |
| Material | Edelstahl | |
| Degree of protection (IP) | IP69/IP69K |
Download
Logistics
| Country of origin | CA |
| Customs tariff number | 73269098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
