1593XGY | Hammond

ABS handheld enclosure, (L x W x H) 140 x 66 x 28 mm, light gray (RAL 7035), IP54, 1593XGY

Order No.: 66H430
EAN: 4099889544794
MPN:
1593XGY
Series: 1593

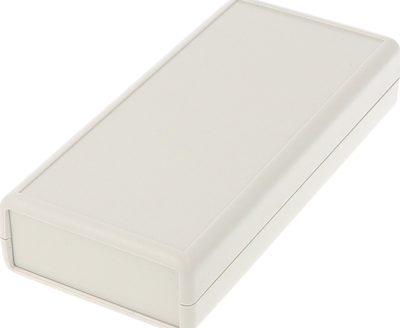

1593XGY Hammond General Purpose Enclosures Image 1
1593XGY Hammond General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
6.7592 € *
Available in 7 Days: 204 pcs. - if ordered today
Total Price:
6.76 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7592 €
5 pcs.
6.0809 €
10 pcs.
5.4740 €
*incl. VAT plus shipping costs
Subject to prior sale

Hand held enclosure, 1593XGY, HAMMOND

The Hammond 1593 Series is a handheld electronic enclosure, ideally suited for mounting printed circuit boards (PCBs).

Features

  • Ergonomically designed for a comfortable fit into the user's hand
  • Lap joint construction provides protection against dust accumulation and splashing water
  • Enclosure is secured with self tapping screws
  • Units with battery door use a long life three snap door
Technical specifications
Filter Property Value
RAL number 7035
Degree of protection (IP) IP54
Height 28 mm
Material ABS
Width 66 mm
Length 140 mm
Colour light gray
Logistics
Property Value
Country of origin US
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
