1590Z235 | Hammond

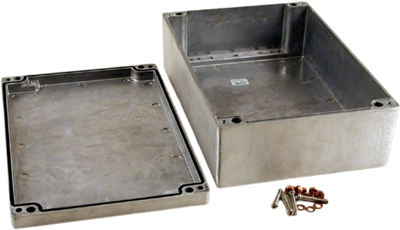

Aluminum die cast enclosure, (L x W x H) 330 x 230 x 113 mm, natural, IP66, 1590Z235

Order No.: 61H2892
EAN: 4099889535709
MPN:
1590Z235
Series: 1590Z
1590Z235 Hammond General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
139.0396 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
139.04 € *
Price list
Quantity
Price per unit*
1 pcs.
139.0396 €
10 pcs.
132.0781 €
*incl. VAT plus shipping costs
Subject to prior sale

Die Cast Enclosure, 1590Z235, Hammond

Features

  • Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
  • Two piece “tongue & groove” construction with a one piece silicone rubber gasket provides protection against access of dust and water.
  • Ideal for repetitive opening and closing.
  • Four recessed stainless steel machine screws secure lid into tapped holes.
  • Easy to wall mount using “through box - blind hole” construction, outside of gasket protection.
Technical specifications
Height 113 mm
Length 330 mm
Colour natural
Material aluminum
Width 230 mm
Degree of protection (IP) IP66
Logistics
Customs tariff number 76169990
Country of origin GB
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
