1590R1BK | Hammond

Aluminum die cast enclosure, (L x W x H) 192 x 112 x 61 mm, black (RAL 9005), IP54, 1590R1BK

Order No.: 61H2384
EAN: 4099889530971
MPN:
1590R1BK
Series: 1590

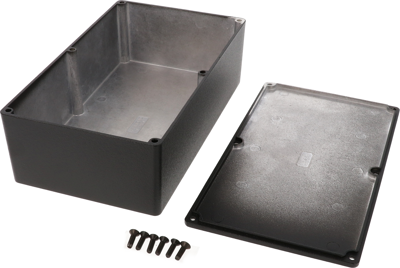

1590R1BK Hammond General Purpose Enclosures Image 1

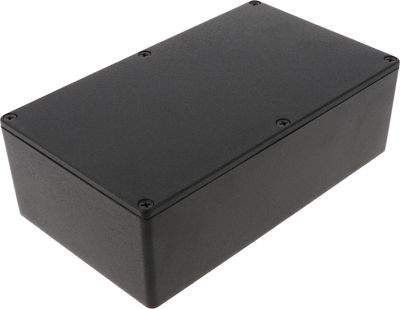

1590R1BK Hammond General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
29.3454 € *
Available in 7 Days: 304 pcs. - if ordered today
Total Price:
29.35 € *
Price list
Quantity
Price per unit*
1 pcs.
29.3454 €
10 pcs.
27.8698 €
50 pcs.
25.0971 €
100 pcs.
22.5862 €
*incl. VAT plus shipping costs
Subject to prior sale

Die Cast Enclosure, 1590R1BK, Hammond

Features

  • Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings.
Technical specifications
Filter Property Value
Degree of protection (IP) IP54
Width 112 mm
Material aluminum
Length 192 mm
Colour black
RAL number 9005
Height 61 mm
Logistics
Property Value
Customs tariff number 76169990
Country of origin TW
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
