1554CGY | Hammond

ABS enclosure, (L x W x H) 119 x 66 x 41 mm, light gray (RAL 7035), IP66, 1554CGY

Order No.: 61H2187
EAN: 4099889529265
MPN:
1554CGY
Series: 1554

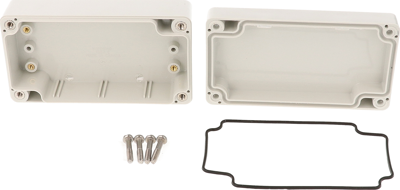

1554CGY Hammond General Purpose Enclosures Image 1

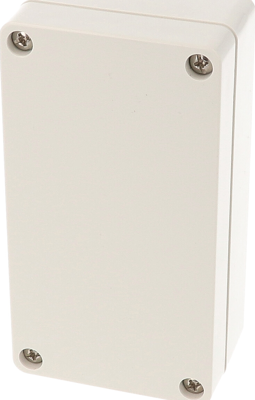

1554CGY Hammond General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
11.4002 € *
Available: 4 pcs.
Available in 7 Days: 285 pcs. - if ordered today
Total Price:
11.40 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4002 €
10 pcs.
10.8409 €
50 pcs.
9.7461 €
100 pcs.
8.7703 €
*incl. VAT plus shipping costs
Subject to prior sale

Enclosure, 1554CGY, Hammond

Features

  • Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
  • ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
  • Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94- 5VA rating, while clear and smoked lids carry a UL94V-0 rating.
  • Polycarbonate versions are cUL and UL 508A listed (File # E65324). ABS plastic versions are not UL listed.
  • Enclosure color is a light gray (RAL 7035).
Technical specifications
Filter Property Value
Height 41 mm
Colour light gray
Width 66 mm
Degree of protection (IP) IP66
RAL number 7035
Material ABS
Length 119 mm
Logistics
Property Value
Country of origin CA
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
