1553TTBKBAT | Hammond

ABS handheld enclosure, (L x W x H) 165 x 80 x 28 mm, black (RAL 9005), IP54, 1553TTBKBAT

Order No.: 50H2914
EAN: 4099889515091
MPN:
1553TTBKBAT
Series: 1553

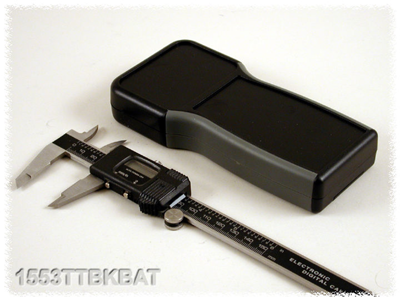

1553TTBKBAT Hammond General Purpose Enclosures Image 1

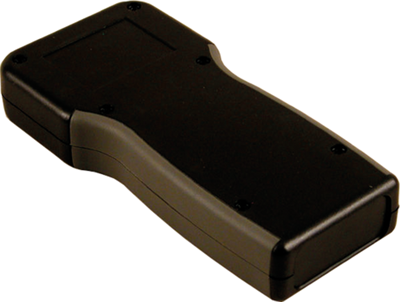

1553TTBKBAT Hammond General Purpose Enclosures Image 2

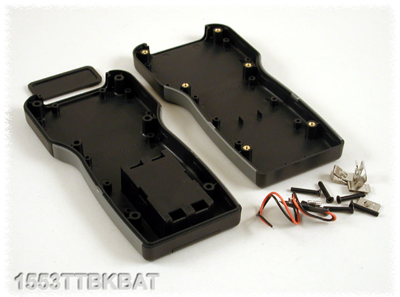

1553TTBKBAT Hammond General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
21.3962 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
21.40 € *
Price list
Quantity
Price per unit*
1 pcs.
21.3962 €
10 pcs.
20.3133 €
50 pcs.
18.2903 €
100 pcs.
16.4577 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS handheld enclosure, 1553TTBKBAT, Hammond

ABS handheld enclosure ergonomically designed to comfortably fit in the user's hand. Both the display and keyboard areas are recessed for membrane devices, perfect for instrument or mobile data enclosures requiring a keypad and display. Enclosure is assembled with M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings. Ideal for repetitive assembly and disassembly.

Technical specifications
Degree of protection (IP) IP54
Length 165 mm
Colour black
Width 80 mm
Height 28 mm
Material ABS
RAL number 9005
Logistics
Customs tariff number 39269097
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
