1553TTBK | Hammond

ABS handheld enclosure, (L x W x H) 165 x 80 x 28 mm, black (RAL 9005), IP54, 1553TTBK

Order No.: 50H2910
EAN: 4099889515077
MPN:
1553TTBK
Series: 1553

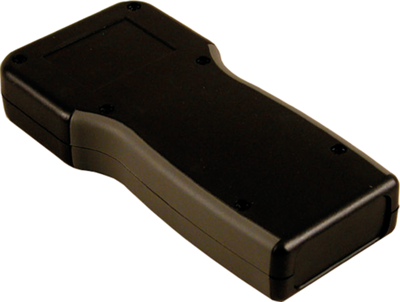

1553TTBK Hammond General Purpose Enclosures Image 1

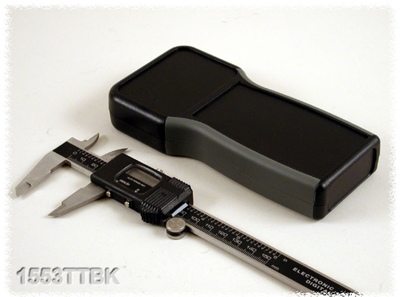

1553TTBK Hammond General Purpose Enclosures Image 2

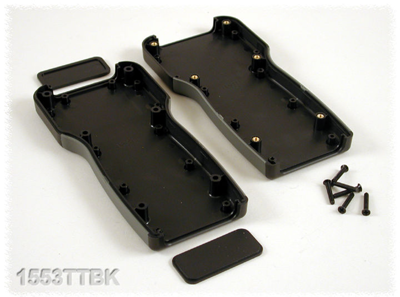

1553TTBK Hammond General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
17.7786 € *
Available in 7 Days: 117 pcs. - if ordered today
Total Price:
17.78 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7786 €
10 pcs.
16.8861 €
50 pcs.
15.2082 €
100 pcs.
13.6731 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS handheld enclosure, 1553TTBK, Hammond

ABS handheld enclosure ergonomically designed to comfortably fit in the user's hand. Both the display and keyboard areas are recessed for membrane devices, perfect for instrument or mobile data enclosures requiring a keypad and display. Enclosure is assembled with M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings. Ideal for repetitive assembly and disassembly.

Technical specifications
Colour black
Degree of protection (IP) IP54
Width 80 mm
Height 28 mm
Length 165 mm
Material ABS
RAL number 9005
Logistics
Country of origin CN
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
