1553TGY | Hammond

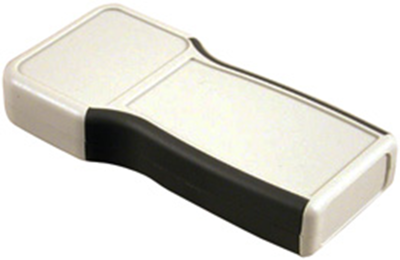

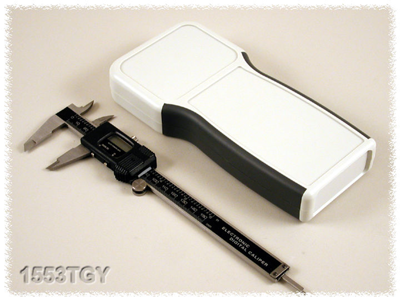

ABS handheld enclosure, (L x W x H) 210 x 100 x 32 mm, light gray (RAL 7035), IP54, 1553TGY
Unit Price (€ / pc.)
24.5140 € *
Available in 7 Days: 166 pcs. - if ordered today
Total Price:
24.51 € *
Price list
Quantity
Price per unit*
1 pcs.
24.5140 €
10 pcs.
23.2764 €
50 pcs.
20.9440 €
100 pcs.
18.8615 €
*incl. VAT plus shipping costs
Subject to prior sale
ABS handheld enclosure, 1553TGY, Hammond

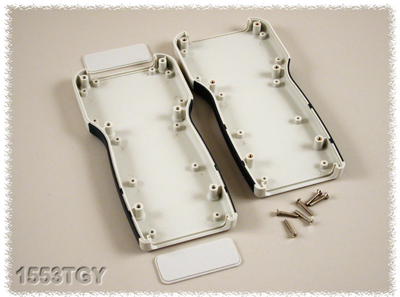

ABS handheld enclosure ergonomically designed to comfortably fit in the user's hand. Both the display and keyboard areas are recessed for membrane devices, perfect for instrument or mobile data enclosures requiring a keypad and display. Enclosure is assembled with M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings. Ideal for repetitive assembly and disassembly.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Length | 210 mm | |
| Colour | light gray | |
| Material | ABS | |
| Width | 100 mm | |
| RAL number | 7035 | |
| Height | 32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
