1553TBKBAT | Hammond

ABS handheld enclosure, (L x W x H) 210 x 100 x 32 mm, black (RAL 9005), IP54, 1553TBKBAT

Order No.: 50H2922
EAN: 4099889515145
MPN:
1553TBKBAT
Series: 1553

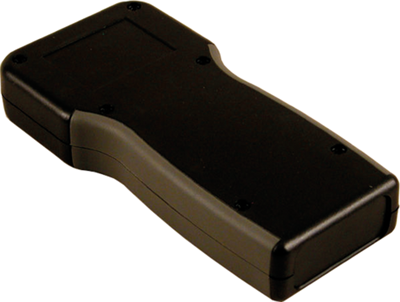

1553TBKBAT Hammond General Purpose Enclosures Image 1

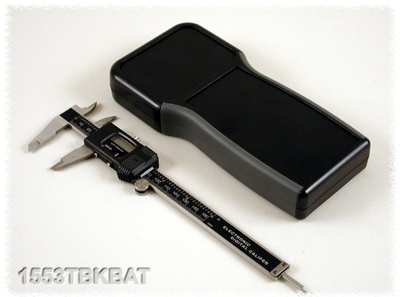

1553TBKBAT Hammond General Purpose Enclosures Image 2

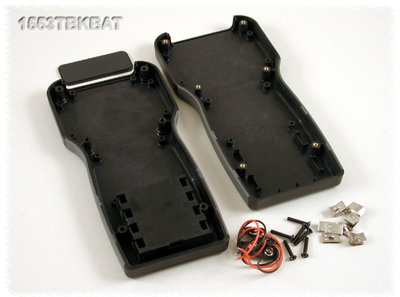

1553TBKBAT Hammond General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
29.4525 € *
Available in 7 Days: 106 pcs. - if ordered today
Total Price:
29.45 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4525 €
10 pcs.
27.9769 €
50 pcs.
25.1804 €
100 pcs.
22.6695 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS handheld enclosure, 1553TBKBAT, Hammond

ABS handheld enclosure ergonomically designed to comfortably fit in the user's hand. Both the display and keyboard areas are recessed for membrane devices, perfect for instrument or mobile data enclosures requiring a keypad and display. Enclosure is assembled with M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings. Ideal for repetitive assembly and disassembly.

Technical specifications
Material ABS
Colour black
Height 32 mm
RAL number 9005
Degree of protection (IP) IP54
Width 100 mm
Length 210 mm
Logistics
Customs tariff number 39269097
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
