1455U2802BK | Hammond
Aluminum enclosure, (L x W x H) 280 x 191 x 66 mm, black (RAL 9004), IP54, 1455U2802BK
Unit Price (€ / pc.)
47.9570 € *
Available in 7 Days: 22 pcs. - if ordered today

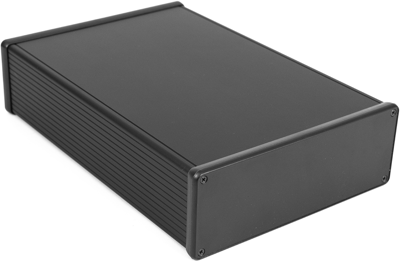

Aluminum enclosure, 1455U2802BK, Hammond
Extruded aluminum enclosure with anodize finish, sliding belly plates with plastic or metal end plate.
Features
- Sized for standard Eurocards
- Extruded body includes a slide removable “belly” plate
- Designed to house P.C. boards or for equipment interfacing
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
Technical specifications
| Filter | Property | Value |
|---|---|---|
| RAL number | 9004 | |
| Length | 280 mm | |
| Height | 66 mm | |
| Colour | black | |
| Material | aluminum | |
| Width | 191 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76169990 |
| Country of origin | CA |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
