1455C802BK | Hammond

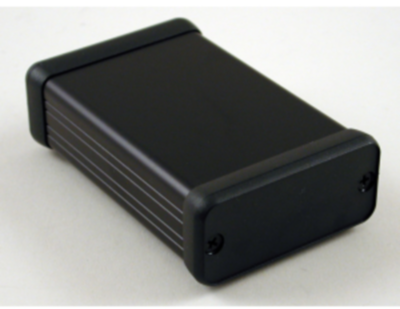

Aluminum enclosure, (L x W x H) 80 x 54 x 23 mm, black (RAL 9005), IP54, 1455C802BK

Order No.: 66H354
EAN: 4099889544039
MPN:
1455C802BK
Series: 1455 PLASTIC
1455C802BK Hammond General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
11.9476 € *
Available: 5 pcs.
Available in 7 Days: 639 pcs. - if ordered today
Total Price:
11.95 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9476 €
5 pcs.
10.7576 €
10 pcs.
9.6866 €
*incl. VAT plus shipping costs
Subject to prior sale

Aluminum enclosure, 1455C802BK, HAMMOND

The Hammond 1455 series enclosure has an extruded aluminium body and two easy to machine, black solid ABS end panels with integral bezel.

This enclosures are designed to house P.C. boards or for equipment interfacing.

Features

  • Sized for standard Eurocards
  • PCBs mount horizontally by sliding into internal slots extruded into the enclosure body
  • Enclosure includes two solid black plastic end panels with integral bezel
  • DIN Rail clips & flange kits are available separately
Technical specifications
Filter Property Value
Height 23 mm
Colour black
Width 54 mm
Degree of protection (IP) IP54
RAL number 9005
Material aluminum
Length 80 mm
Logistics
Property Value
Country of origin CA
Customs tariff number 76169990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
