1455C1202BK | Hammond

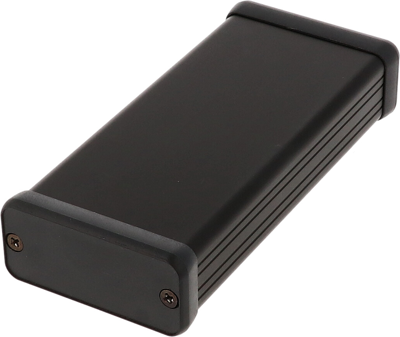

Aluminum enclosure, (L x W x H) 120 x 54 x 23 mm, black (RAL 9005), IP54, 1455C1202BK
Unit Price (€ / pc.)
12.0547 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
12.05 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0547 €
10 pcs.
11.4597 €
50 pcs.
10.3054 €
100 pcs.
9.2820 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, 1455C1202BK, Hammond
Features
- Designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocards
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| RAL number | 9005 | |
| Length | 120 mm | |
| Colour | black | |
| Material | aluminum | |
| Height | 23 mm | |
| Width | 54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76169990 |
| Country of origin | CA |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
