2475-3410-25-07 | HÄWA
Steel enclosure, (L x W x H) 342 x 106 x 257 mm, light gray (RAL 7035), 2475-3410-25-07
Unit Price (€ / pc.)
90.7970 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
90.80 € *
Price list
Quantity
Price per unit*
1 pcs.
90.7970 €
5 pcs.
81.7054 €
10 pcs.
73.5420 €
*incl. VAT plus shipping costs
Subject to prior sale

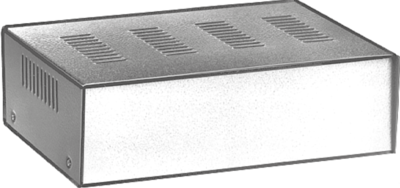

Enclosures, made of steel sheet, type Häwa 2475-.
With downward chamfered bezel. Double-sided slotted vent lamellae (facing the interior) in the top and bottom panels, and in the side walls; Material: enclosure and chassis made of 1.0 mm steel sheet (electrolytic galvanization). Front panel: 1.0 mm sheet steel. Case coating: powder-coated (epoxy polyester), light-gray (RAL 7035), slightly structured. Front panel: smooth on one side and varnished with the same color. Chassis: galvanized and blue chromalized.

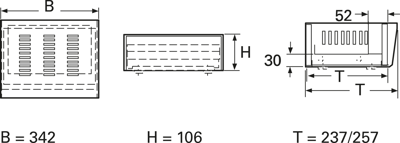

Technical attributes (type, overall dimensions width (a), height (b), depth of the enclosure (f)/ front frame top (c1)): 3410-25-07, W 342, H 106, D 237/257 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 257 mm | |
| Colour | light gray | |
| Material | steel | |
| Width | 106 mm | |
| RAL number | 7035 | |
| Length | 342 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269060 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
