2441-3030-12-07 | HÄWA
Steel enclosure, (L x W x H) 120 x 300 x 300 mm, light gray (RAL 7035), IP65, 2441-3030-12-07
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
155.1879 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
155.19 € *
Price list
Quantity
Price per unit*
1 pcs.
155.1879 €
5 pcs.
139.6703 €
10 pcs.
125.7116 €
*incl. VAT plus shipping costs
Subject to prior sale

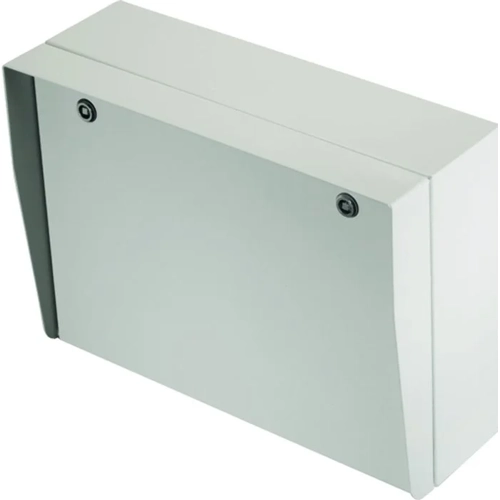

Enclosures, made of steel sheet, type Häwa 2441-.
Pushbutton enclosure, for example for control applications etc. The front frame is rounded towards the front to protect the panel mount instruments (removable); Material: 1.5 mm steel sheet. Finish: powder coating, light-gray RAL 7035 (can be painted). Hinged lid, fastened on the bottom. Opening angle: 180 degrees. With square 6.0 mm rotary bar lock. Sealing: lid foamed with special sealing. Degree of protection: IP 65. Grounding: in the enclosure and front panel. Please order the busbars separately.

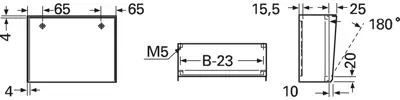

Technical attributes (type, outer dimensions width, height, depth): 3030-12-07, W 300, H 300, D 120 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | steel | |
| Length | 120 mm | |
| Width | 300 mm | |
| Height | 300 mm | |
| Colour | light gray | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
