3000019600 | Habia Cable
Coax RF cable, 50 Ω (50R), white, Staku stranded wire, silver-plated, 3000019600
Unit Price (€ / mtr.)
2.9869 € *
Available: 1,230 mtr.
Total Price:
2.99 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9869 €
10 mtr.
2.6299 €
100 mtr.
2.3086 €
200 mtr.
2.2253 €
800 mtr.
2.0825 €
*incl. VAT plus shipping costs
Subject to prior sale

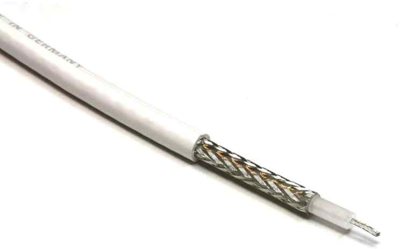

Coax RF cables, Teflon insulation, 50 ohm, type RG 196 A/U.
Heat resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Material | PTFE | |
| Colour | white | |
| Outer diameter | 1.94 mm | |
| Cable material | copper, silver-plated | |
| Cable structure | 7 x 0.1 mm | |
| Shielding | shielded | |
| Dielectric material | PTFE | |
| Dielectric diameter | 0.84 mm | |
| Capicity/m | 94 pF/m | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85442000 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
