3000018700 | Habia Cable

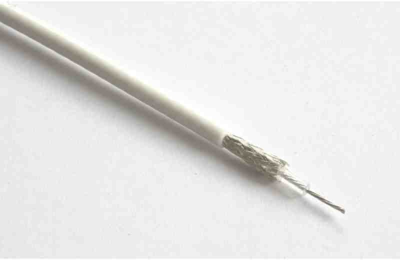

Coax RF cable, 75 Ω (75R), white, Staku stranded wire, silver-plated
Unit Price (€ / mtr.)
3.6771 € *
Available: 1,783 mtr.
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 mtr.
3.6771 €
10 mtr.
3.4748 €
100 mtr.
3.2725 €
500 mtr.
3.0702 €
1000 mtr.
2.8560 €
*incl. VAT plus shipping costs
Subject to prior sale
Coax RF cables, Teflon insulation, 75 ohm to MiL-C-17, type RG 187 A/U.
Heat resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 75 Ω | |
| Material | PTFE | |
| Colour | white | |
| Outer diameter | 2.69 mm | |
| Cable material | copper, silver-plated | |
| Cable structure | 7 x 0.1 mm | |
| Shielding | shielded | |
| Dielectric material | PTFE | |
| Dielectric diameter | 1.6 mm | |
| Capicity/m | 63 pF/m | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85442000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
