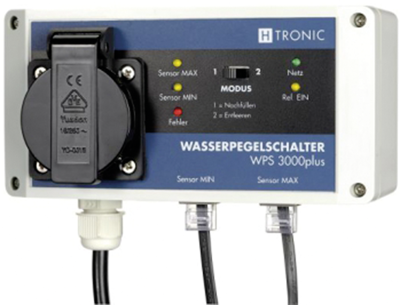

Water level switches, H-Tronic WPS 3000 plus.
Electronic differential switch for automatic fill level monitoring, can be configured fro refill or draining mode. The liquid level is held in a hysteresis between tow water sensors
Features: selectable trigger point for any water level, configurable for NC or NO action, no dangerous line voltage on the sensor, operation is user-friendly and does not require supervision, supports remote measurements at distances up to 20 m via two-wire cable
Operating voltage: 230 V/50 Hz
Power consumption: max. 1.5 W
Output voltage: 230 V/50/60 Hz
Breaking capacity: max. 3000 W
Functional range: - 15 to +40 °C
Degree of protection: IP 20. Supplied with two sensors, each with 10 m cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Degree of protection (IP) | IP20 | |
| max. operating temperature | 40 °C | |
| min. operating temperature | -15 °C | |
| Version | water level switch | |
| Voltage | 230 VAC |
