1114425 | H-Tronic
Temperature controller, 230 VAC, 55 to 125 °C, white, 1114425
Order No.: 06N845
EAN: 4099891544355
MPN:
1114425
TS 125
Unit Price (€ / pc.)
62.9748 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
62.97 € *
Price list
Quantity
Price per unit*
1 pcs.
62.9748 €
5 pcs.
58.7741 €
*incl. VAT plus shipping costs
Subject to prior sale

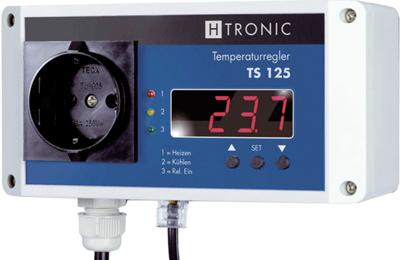

Temperature controllers, type H-Tronic TS 125.
Suitable for installation in panel frame, with external plug-in temperature sensor, LED displays for relay ON state, sensor failure, heating and cooling, remote measurement up to 50 m; Operating voltage: 230 VDC. Power consumption: approx. approx. 2.0 VA. Output: electrically isolated relay contact 16 A/230 VAC. Measuring range: –55 to 125 °C. Resolution: 0.1 °C. Dimensions: 160 x 80 x 60 mm.
Type: TS 125, temperature controller,
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| min. operating temperature | 55 °C | |
| Degree of protection (IP) | IP20 | |
| Assembly | wall mounting | |
| Voltage | 230 VAC | |
| Colour | white | |
| Version | temperature controller |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90321080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
