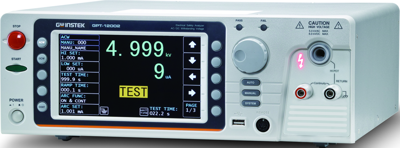

GPT-12002 | GW Instek
Safety analyzer, 7" TFT display, IEC 61010-2-034, GW Instek GPT-12002
Unit Price (€ / pc.)
2,069.41 € *
Available in 10 days: 6 pcs. - if ordered today
Electrical Safety Analyzer, GPT-12002, GW Instek
GW Instek introduces the flagship model (200VA output capacity) safety analyzer-the GPT-12000 series, which is the first safety analyzer in the world to comply with IEC 61010-2-034 (Safety requirement for electrical requirement for measurement, control and laboratory use – particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments.
Features
- Manual / Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to 47μF
- Statistics & Analysis Function
- Sweep Function for DUT Characteristic Analysis
- Convenience Listed AUTO mode easy to read result & judge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Insulation resistance Min | 0.1 MΩ | |
| Measurement Standard | IEC 61010-2-034 | |
| Insulation resistance Max | 50 Ω | |
| Max measured value DC voltage | 6000000 V | |
| Version | 7" TFT display | |
| Product type | safety analyzer | |
| Max measured value AC voltage | 5000000 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 90303320 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
