DAQ-904 | GW Instek
2 wire matrix, 300 V for DAQ-9600, DAQ-904
Unit Price (€ / pc.)
581.91 € *
Available in 3 Days: 4 pcs. - if ordered today

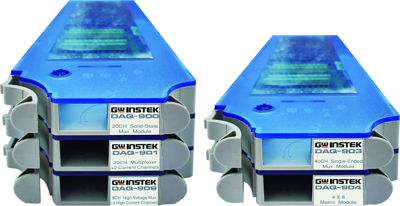

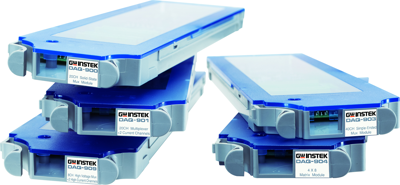

Matrix , DAQ-904, GW Instek

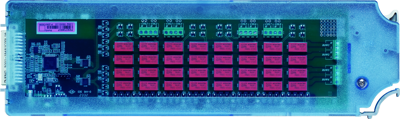

DAQ-904 module can provide the most flexible connection path between your DUT and the test system, allowing different test instruments to be connected to multiple points on the DUT at the same time. DAQ-904 can connect the rows and columns of multiple modules to build larger matrices, such as 8 x 8, 4 x 16...etc. Up to 96 crosspoints can be built in a single instrument.
Features
- 4 x 8 2-Wire Matrix
- The switching speed 3 ms
- 32 2-wire intersections
- Up to 96 crosspoints (3 slots)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 2 wire matrix | |
| Version | 300 V | |
| Suitable for | DAQ-9600 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 90309000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
