GDS-912G (CE) | GW Instek

Digital Storage Oscilloscope, GDS-912G (CE), GW Instek

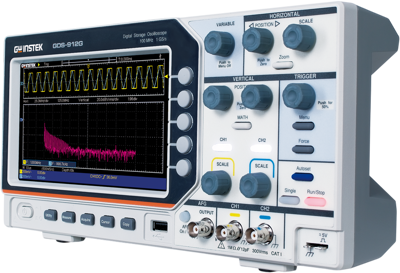

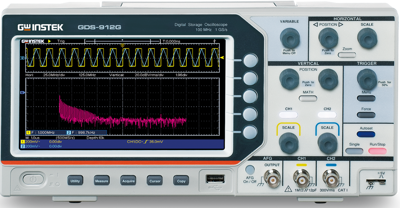

GDS-912/912G digital storage oscilloscopes feature a 7-inch widescreen display with 15 horizontal divisions, offering 50% more signal display area. It provides a maximum sampling rate of 1 GSa/s and a memory depth of 20 Mpts per channel, enabling the capture of long-duration transients and maintaining its sampling rate at middle and low speed time bases through long memory settings. With 30 automatic measurement parameters, the oscilloscope allows users to quickly and easily analyze various signal conditions. The Area parameter supports waveform integration-an example application being the integration calculation of energy (in joules) from a power waveform (watts seconds).

The +PulseCount feature enables fast data acquisition in applications such as stepper motor control (number of pulses per unit time) or industrial sewing machines (number of stitches per unit time). Other counting parameters include –PulseCount, RiseEdgeCnt, and FallEdgeCnt. The Cursor RMS function allows users to measure the RMS value within a specified interval using cursors-ideal for measuring the transient RMS of inrush currents.
