GDM-9052 | GW Instek

TRMS digital multimeter GDM-9052, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 10 nF to 100 µF

Order No.: 24K7930
EAN: 4711458122966
MPN:
GDM-9052
01DM905200GS
Series: GDM

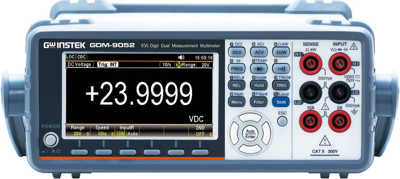

GDM-9052 GW Instek Multimeters Image 1

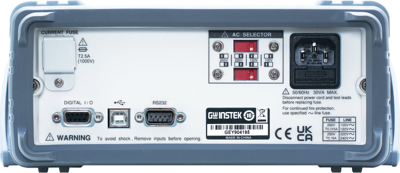

GDM-9052 GW Instek Multimeters Image 2

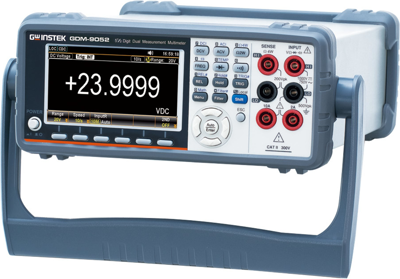

GDM-9052 GW Instek Multimeters Image 3
Image may differ
Unit Price (€ / pc.)
617.61 € *
Available in 3 Days: 2 pcs. - if ordered today
Total Price:
617.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
617.61 €

Dual Measurement Multimeter, GDM-9052, GW Instek

GW Instek presents the new style 5 1/2 Digit Dual Measurement Multimeter─ GDM-9052 to replace GDM-8351 and GDM-8352 (China only) of the same category. GDM-9052 features LCD display, maximum 239,999 counts, 0.012 % basic DC voltage accuracy, A.I. measurement and USB/RS232C connectors to provide users with measurement precision, lucid data observation, and the convenient connection with the personal computer. In addition to the fundamental measurement items such as AC/DC voltage, AC/DC current, AC+DC voltage/current, 2Wire/4Wire resistance, frequency, temperature measurement, continuity beeper and diode test, GDM-9052 is equipped with the capacitance measurement function. Furthermore, the GDM-9052 also provides many math functions, including maximum/minimum values, dB, dBm, compare, reading hold, algorithms (MX+B, 1/X, %) etc. to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.

Features

  • A. I. Measurement offers automatic identification and measurement for Voltage, Resistance, Diode and Continuity tests without the need for manual selection
  • True RMS (AC, AC+DC) measurements
  • Dual Measurement Function to Providing Two Selected Measurement Simultaneously
  • Digital I/O provides dual mode (standard Compare and User definition modes)
Technical specifications
Filter Property Value
max. voltage measuring range (AC) 750 V
max. measured current value (DC) 10 A
Version digital multimeter
TRMS possible Yes
max. voltage measuring range (DC) 1000 V
Display Digits 239999
max. measured current value (AC) 10 A
max. resistance range 100 MΩ
Capacity range 10 nF to 100 µF
Logistics
Property Value
Customs tariff number 90303100
Country of origin CN
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
