100kHz Hand-held LCR MeterLCR-1100
Unit Price (€ / pc.)
502.18 € *
Available in 3 Days: 10 pcs. - if ordered today

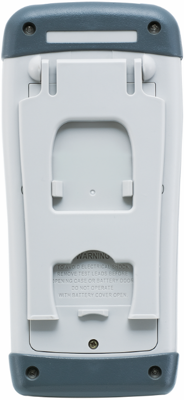

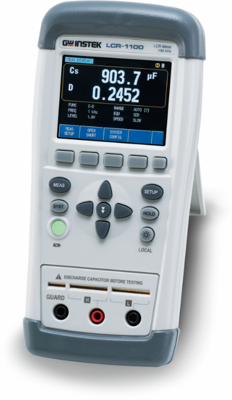

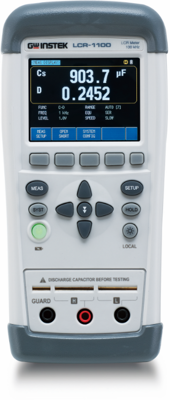

Handheld LCR Meter, LCR-1100, GW Instek
The LCR-1100 is a handheld LCR meter with the automatic real-time test function. It adopts TFT-LCD and provides a basic accuracy of 0.2%. Users can choose to use buttons or touch screen operations. The LCR-1100 with high measurement accuracy and usability, is suitable for precision tests, including maintenance test, component production, schools/research institutes, and even quality test.
Features
- 2.8” TFT Touch LCD
- Auto LCR Mode for Automatic Component Type Identification and measurement
- Data Hold
- USB (Virtual COM) Interface for Remote Communication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | LCR meter | |
| Version | with real-time test function | |
| Measuring frequencies | 50 Hz-100 kHz | |
| Capacity range | 1 pF to 50 mF | |
| Resistance Range | 0.5 Ω to 10 MΩ | |
| Inductance range | 0.5 µH-1000 H |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
