LCR-1010 | GW Instek
10kHz Hand-held LCR Meter
Unit Price (€ / pc.)
398.65 € *
Available in 3 Days: 10 pcs. - if ordered today

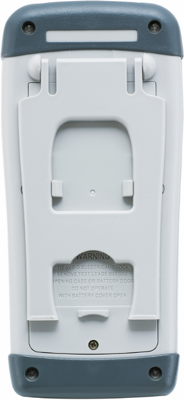

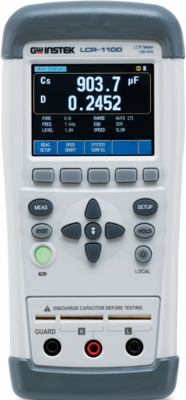

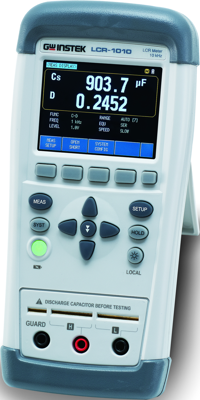

Handheld LCR Meter, LCR-1010, GW Instek
The series adopts TFT-LCD and provides a basic accuracy of 0.2%. Users can choose to use buttons or touch screen operations. The series, with high measurement accuracy and usability, is suitable for precision tests, including maintenance test, component production, schools/research institutes, and even quality test. The LCR-1010 provides a test frequency up to 10 kHz.
Features
- Auto-LCR-Modus zur automatischen Identifizierung und Messung von Bauteiltypen
- Data Hold
- USB (Virtual COM) Schnittstelle für Fernkommunikation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | LCR meter | |
| Version | 2.8" TFT display | |
| Measuring frequencies | 50 Hz-10 kHz | |
| Capacity range | 1 pF to 50 mF | |
| Resistance Range | 0.5 Ω to 10 Ω | |
| Inductance range | 0.5 µH-1000 H |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
