SPS-1820 | GW Instek
Laboratory power supply, 18 VDC, outputs: 1 (20 A), 0 to 20 A, 360 W, 115-230 VAC, SPS-1820
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
523.60 € *
Available in 10 days: 6 pcs. - if ordered today

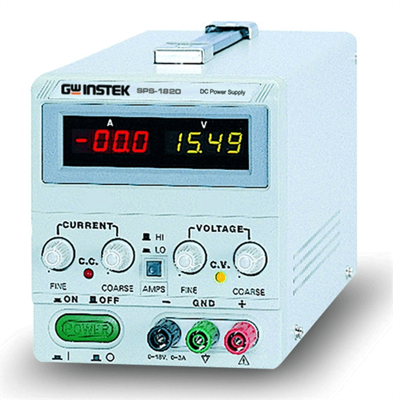

Switching-mode power supply, SPS-1820, GW Instek
GW Instek SPS-1820 Switching DC Power Supply, 0-18 Volts, 0-20 Amps. The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 18 VDC | |
| Output current | 20 A | |
| Range of Output Currence | 0 to 20 A | |
| Power | 360 W | |
| Input voltage AC | 115-230 VAC | |
| Number of outputs | 1 | |
| Width | 128 mm | |
| Height | 145 mm | |
| Depth | 285 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
