PSS-3203 | GW Instek
Laboratory power supply, 32 VDC, outputs: 1 (3 A), 0 to 3 A, 158 W, 100-230 VAC, PSS-3203
Unit Price (€ / pc.)
597.38 € *
Standard delivery time from the manufacturer is: 1 Week
Mains adapter, PSS-3203, GW Instek

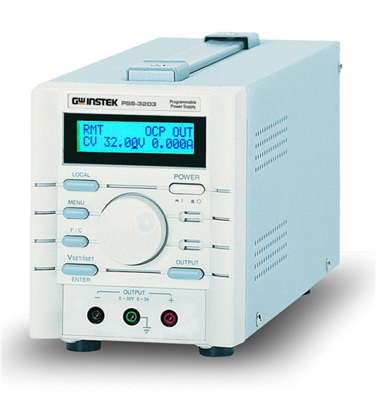

GW Instek PSS-3203 Single Output Programmable DC Power Supply, 0-32 Volts, 0-3 Amps, 96 Watts. The PSS-Series are single output, 96 or 100W, programmable linear DC power supplies. OVP, OCP, and OTP protect the PSS series and their load from unexpected conditions. The LCD panel simultaneously displays output and other parameters, the regulated cooling fan ensures low noise for comfortable operation. RS232C and GPIB interfaces, SCPI command sets, and LABVIEW drivers make remote control and ATE software development easier. (Note: only RS-232C or GPIB can be installed at one time) The compact PSS series are suitable for any high resolution bench-top or rack mount application.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 315 mm | |
| Width | 108 mm | |
| Range of Output Currence | 0 to 3 A | |
| Input voltage AC | 100-230 VAC | |
| Output current | 3 A | |
| Height | 140 mm | |
| Output voltage DC | 32 VDC | |
| Number of outputs | 1 | |
| Power | 158 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
