PSP-2010 | GW Instek
Laboratory power supply, 20 VDC, outputs: 1 (10 A), 0 to 10 A, 200 W, 230 VAC, PSP-2010
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
422.45 € *
Available in 10 days: 4 pcs. - if ordered today
Mains adapter, PSP-2010, GW Instek

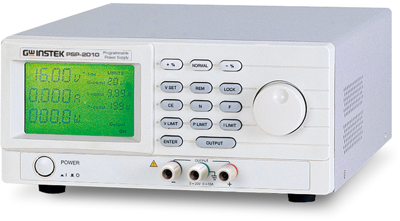

GW Instek PSP-2010 LCD Display Programmable Switching DC Power Supply, 0-20 Volts, 0-10 Amps, 200W. The PSP-Series are single output, 200W, programmable switching DC power supplies. OVP, OCP, OTP, and OPP protect the PSP-Series and its loads from unexpected conditions. The PSP-Series have large LCD panel do display output and parameter simutaneously and a key lock feature to prevent changing the settings. The PSP-Series is suitable for generic bench-top applications in laboratories and educational institutions.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 20 VDC | |
| Output current | 10 A | |
| Range of Output Currence | 0 to 10 A | |
| Power | 200 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 1 | |
| Width | 225 mm | |
| Height | 100 mm | |
| Depth | 305 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
