PPX-3603 | GW Instek
Laboratory power supply, 0 bis 36 V, outputs: 1 (3 A), 0 to 3 A, 108 W, 100 to 240 VAC, PPX-3603
Unit Price (€ / pc.)
1,178.10 € *
Available in 10 days: 4 pcs. - if ordered today

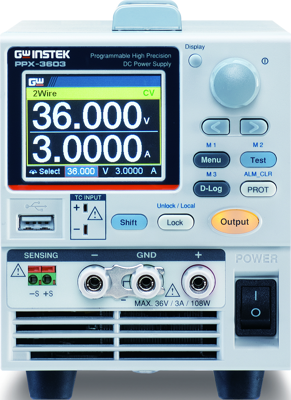

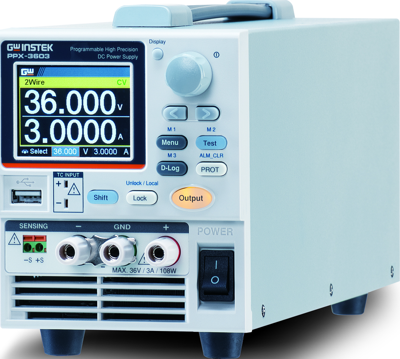

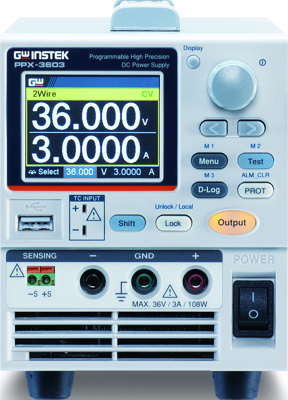

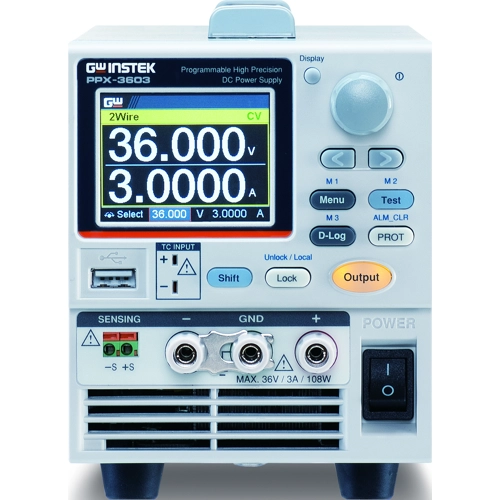

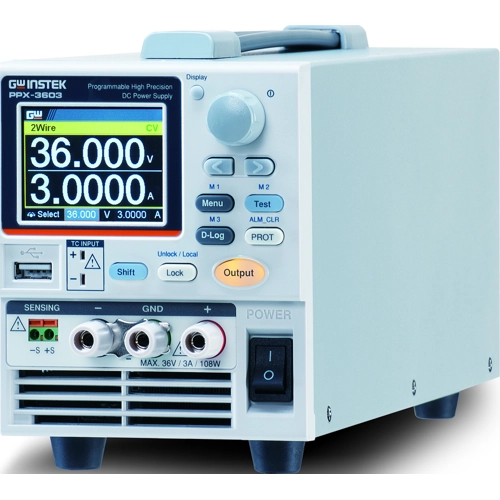

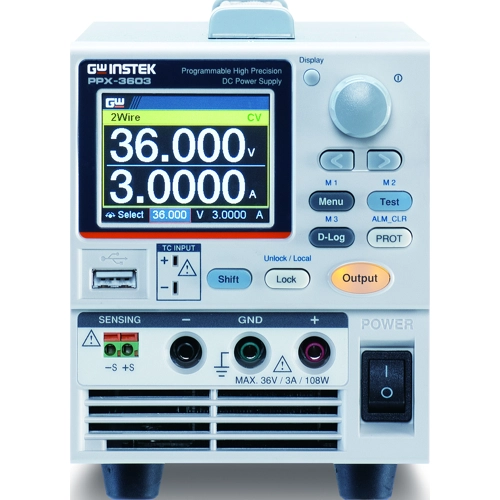

Programmable High-Precision DC Power Supply, PPX-3603, GW Instek
The PPX-3603 programmable high-precision DC power supply has the output low noise (0.35m Vrms) and fast transient response characteristic (<50 μs) of a conventional linear power supply. It also provides constant voltage and constant current priority output mode, and the power supply can also set the voltage and current rising/falling slew rate separately, and the delay time for the output to be turned on and off. The PPX has four current levels and two voltage levels to provide the user with high-precision measurement, and via the Data Logger function, the measurement record can be stored in the USB for long-term measurement and recording of IoT device, portable device, wearable device, and sensor component.
Features
- Power output ON/OFF delay function
- Adjustable voltage and current slew rate
- Bleeder circuit control
- Delayed over-current protection(OCP Delay)
- Sequential power output function
- Remote Sensing function
- Data Logger
- Supports K Type thermocouple temperature measurement
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 107 mm | |
| Depth | 313 mm | |
| Output current | 3 A | |
| Height | 124 mm | |
| Number of outputs | 1 | |
| Range of Output Currence | 0 to 3 A | |
| Power | 108 W | |
| Input voltage AC | 100 to 240 VAC | |
| Output voltage DC | 0 to 36 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044085 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
