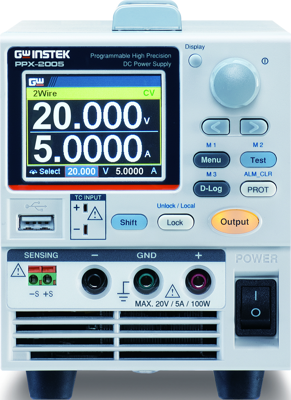

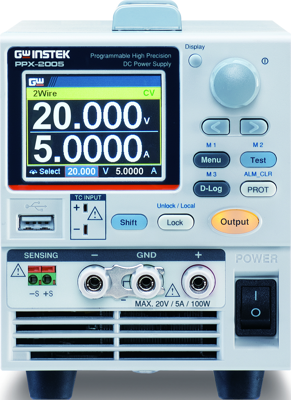

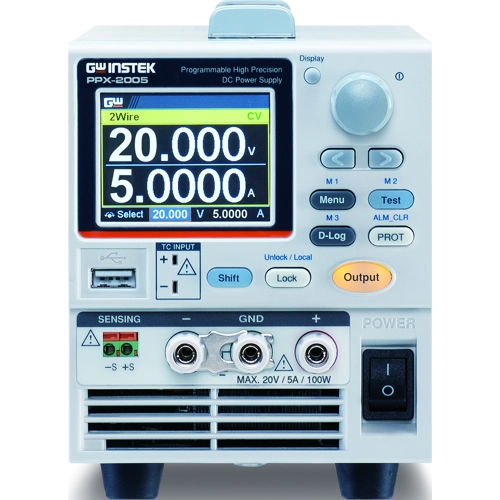

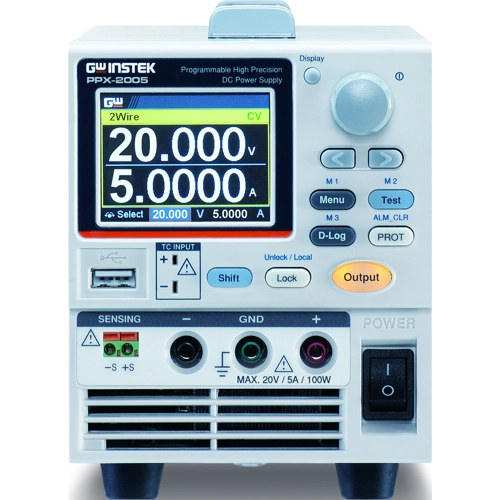

Programmable High-Precision DC Power Supply, PPX-2005, GW Instek

The PPX-2005 programmable high-precision DC power supply has the output low noise (0.35m Vrms) and fast transient response characteristic (<50 μs) of a conventional linear power supply. It also provides constant voltage and constant current priority output mode, and the power supply can also set the voltage and current rising/falling slew rate separately, and the delay time for the output to be turned on and off. The PPX-2005 has four current levels and two voltage levels to provide the user with high-precision measurement, and via the Data Logger function, the measurement record can be stored in the USB for long-term measurement and recording of IoT device, portable device, wearable device, and sensor component.

Features

• Power output ON/OFF delay function
• Adjustable voltage and current slew rate
• Bleeder circuit control
• Delayed over-current protection(OCP Delay)
• Sequential power output function
• Remote Sensing function
• Data Logger
• Supports K Type thermocouple temperature measurement
