GPS-3030DD | GW Instek
Laboratory power supply, 30 VDC, outputs: 1 (3 A), 0 to 3 A, 90 W, 100-240 VAC, GPS-3030DD
Unit Price (€ / pc.)
274.89 € *
Standard delivery time from the manufacturer is: 1 Week
Mains adapter, GPS-3030DD, GW Instek

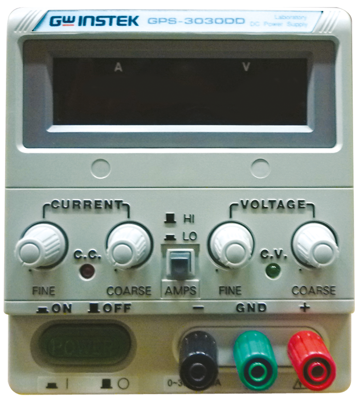

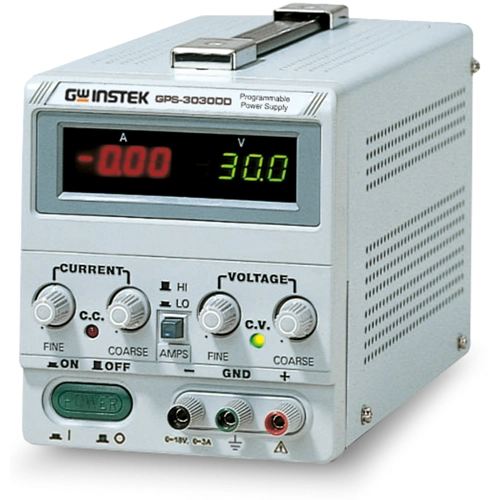

GW Instek GPS-3030DD 90W Single-Output Linear DC Power Supply with 0.39" Dual Digital LED screen, 30V DC, 3 Amp. The GPS-Series are single output, 54 to 90W, linear DC power supplies. The GPS-Series include both analog and digital display meters with varying power outputs. The GPS-Series feature Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Range of Output Currence | 0 to 3 A | |
| Depth | 285 mm | |
| Output voltage DC | 30 VDC | |
| Output current | 3 A | |
| Width | 128 mm | |
| Height | 145 mm | |
| Power | 90 W | |
| Number of outputs | 1 | |
| Input voltage AC | 100-240 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
