GPR-1820HD | GW Instek
Laboratory power supply, 18 VDC, outputs: 1 (20 A), 0 to 20 A, 360 W, 100-240 VAC, GPR-1820HD
Unit Price (€ / pc.)
817.53 € *
Standard delivery time from the manufacturer is: On Request
Mains adapter, GPR-1820HD, GW Instek

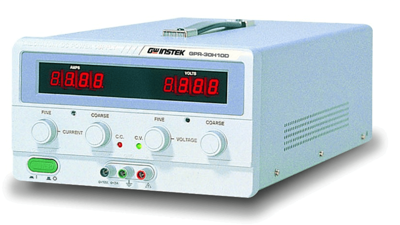

GW Instek GPR-1820HD Series GPR-H Single Output Linear DC Power Supply with LED Display, 20 Output Amps, 18 Output Volts, 360 Output Watts. The GPR-H Series are single output, 240 to 375W, linear DC power supplies. Ranging from 8 to 300V, the GPR-H Series come in a number of different configurations to suit a variety of different needs.To protect loads, the GPR-H Series feature robust protection measures with overload and reverse polarity protection. Continuous or dynamic output is supported for pulsed current applications such as power amplifier testing. The high regulation and low ripple/noise make the GPR-H Series suitable for high-end bench-top applications requiring precision.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 225 mm | |
| Input voltage AC | 100-240 VAC | |
| Range of Output Currence | 0 to 20 A | |
| Height | 145 mm | |
| Output current | 20 A | |
| Depth | 420 mm | |
| Number of outputs | 1 | |
| Power | 360 W | |
| efficiency | 80 % | |
| Output voltage DC | 18 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
