GPR-11H30D | GW Instek
Laboratory power supply, 110 VDC, outputs: 1 (3 A), 0 to 3 A, 330 W, 100-240 VAC, GPR-11H30D
Unit Price (€ / pc.)
727.09 € *
Standard delivery time from the manufacturer is: On Request
Mains adapter, GPR-11H30D, GW Instek

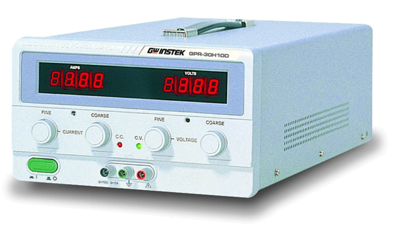

GW Instek GPR-11H30D Single Output Linear DC Power Supply with LED Display, 3 Output Amps, 110 Output Volts, 330 Output Watts. The GPR-H Series are single output, 240 to 375W, linear DC power supplies. Ranging from 8 to 300V, the GPR-H Series come in a number of different configurations to suit a variety of different needs.To protect loads, the GPR-H Series feature robust protection measures with overload and reverse polarity protection. Continuous or dynamic output is supported for pulsed current applications such as power amplifier testing. The high regulation and low ripple/noise make the GPR-H Series suitable for high-end bench-top applications requiring precision.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 100-240 VAC | |
| Height | 145 mm | |
| Output voltage DC | 110 VDC | |
| Range of Output Currence | 0 to 3 A | |
| Power | 330 W | |
| Output current | 3 A | |
| Depth | 420 mm | |
| Number of outputs | 1 | |
| Width | 225 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
