GPP-1326 | GW Instek

Laboratory power supply, 0 bis 32 V, outputs: 1 (6 A), 0 to 6 A, 192 W, GPP-1326

Order No.: 24K7815
EAN: 4713008672457
MPN:
GPP-1326
01PP132630GS
Series: GPP
GPP-1326 GW Instek Bench Power Supplies and Loads

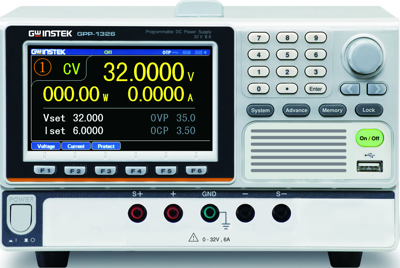

Image may differ
Unit Price (€ / pc.)
622.37 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
622.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
622.37 €

Multiple Output Programmable DC Power Supply, GPP-1326, GW Instek

The GPP-1326 is a single-channel programmable DC power supply that offers an output range of 0-32V and 0-6A. Designed for precision and versatility, the GPP-1326 delivers high programming resolution (1 mV / 0.1 mA) and readback resolution (0.1 mV / 0.1 mA), ensuring accurate control and monitoring of voltage and current parameters. It features optimal low-ripple noise performance (≦350 µVrms / ≦2 mArms) and fast output transient recovery (≦50 µs), making it suitable for sensitive applications. An independent output on/off switch is included, providing convenient control and improved safety during testing.

The GPP-1326 offers a variety of display modes, including single-channel setting values, measurement values, and waveform displays. Its versatile Monitor function allows users to define custom monitoring conditions, trigger sound alarms, or automatically stop output during measurement to protect the DUT (Device Under Test). The GPP-1326 also includes a built-in output recorder that logs voltage and current data during operation to internal memory. Recorded data can be saved in *.REC or *.CSV format and transferred to a USB flash drive. The exported *.CSV files can be opened in Excel for further analysis, enabling effective data tracking and test reporting.

Features

  • Supports Setting Value, Measurement Value and Output Waveform Display
  • Load Function
  • Utilizing Hardware to Realize Over Voltage Protection
  • Over Current Protection
  • Over Temperature Protection
  • Intelligent Temperature Control Fan Effectively Reduces Noise
Technical specifications
Filter Property Value
Power 192 W
Range of Output Currence 0 to 6 A
Output voltage DC 0 to 32 V
Height 145 mm
Width 213 mm
Depth 312 mm
Output current 6 A
Number of outputs 1
Logistics
Property Value
Country of origin CN
Customs tariff number 85044085
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
