3392 1280 246 | Günther

Reed relay, 24 V (DC), 1 Form A (N/O), DIP, 50 W, 3392 1280 246

Order No.: 30G482
EAN: 4099889350296
MPN:
3392 1280 246
Series: 1280
3392 1280 246 Günther Reed Relays Image 1

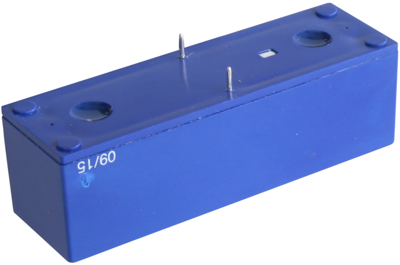

3392 1280 246 Günther Reed Relays Image 2
3392 1280 246 Günther Reed Relays Image 3
Image may differ
Unit Price (€ / pc.)
115.0611 € *
Available: 188 pcs.
Total Price:
115.06 € *
Price list
Quantity
Price per unit*
1 pcs.
115.0611 €
5 pcs.
108.1591 €
15 pcs.
104.0179 €
50 pcs.
99.4126 €
*incl. VAT plus shipping costs
Subject to prior sale

High-voltage reed relays, type Günther 3392 1280.

Pluggable and solderable pins for PCB mounting and contact terminals on the top. The high-voltage contact and coil are sealed in a molded plastic case; Contact type: 1 x NO. Switching voltage: max. 10000 V AC/DC. Contact rating: max. 50 W. Switching current: max. 3.0 A. Continuous current: max. 5.0 A. Contact resistance: max. 250 mohm. Dielectric strength coil/contact: max. 20000 VDC. Operating temperatures: –20 to +70 °C.

Technical attributes (type, rated coil voltage, coil resistance (±15 %)): 3392.1280.246, 24 VDC, 720 ohm

Technical specifications
Filter Property Value
Switching Voltage (AC) 10 kV
Coil voltage (DC) 24 V
Coil resistance 720 Ω
switching current 3 A
Contact type 1 Form A (N/O)
Breaking capacity 50 W
Connection PCB connection
Switching Voltage (DC) 10 kV
Design DIP
Logistics
Property Value
Country of origin RO
Customs tariff number 85364190
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
