BME8504SA | GREWUS
SMD signal transmitter, 15 Ω, 85 dB, 3 VDC, 90 mA, black, BME8504SA
Order No.: 36M366
EAN: 4099891541729
MPN:
BME8504SA
Unit Price (€ / pc.)
1.4756 € *
Available: 534 pcs.
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
25 pcs.
1.3447 €
100 pcs.
1.2257 €
250 pcs.
1.1662 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

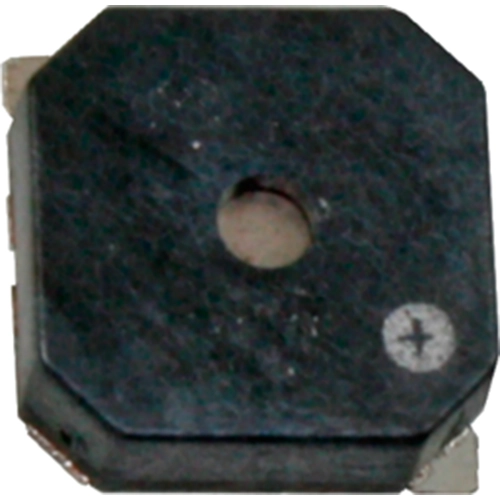

SMD buzzers, type GREWUS BME8504SA.
Operating voltage: 2.5 to 4.5 V. Rated voltage: 3.6 V. Current consumption: max. 90 mA. Frequency: 2700 Hz. Sound pressure: min. 85 dB(A). DC resistance 15 ohm. Operating temperatures: –30 to +70 °C. Color: black. Weight: 0.42 g.
Type: BME8504SA, buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Impedance | 15 Ω | |
| Sound pressure level | 85 db | |
| Resonance frequency | 2700 Hz | |
| Version | SMD signal transmitter | |
| Voltage | 3 VDC | |
| Rated current | 90 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
