BME8504S-03A | GREWUS
SMD signal transmitter, 15 Ω, 87 dB, 3.6 VDC, 100 mA, black, BME8504S-03A
Order No.: 36M348
EAN: 4099891541644
MPN:
BME8504S-03A
Unit Price (€ / pc.)
1.7612 € *
Available: 705 pcs.
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7612 €
25 pcs.
1.5708 €
100 pcs.
1.4399 €
250 pcs.
1.3685 €
1000 pcs.
1.2376 €
*incl. VAT plus shipping costs
Subject to prior sale

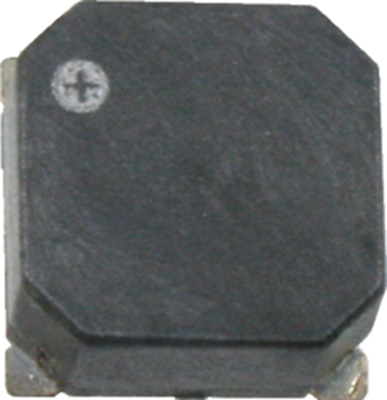

SMD buzzers, type GREWUS BME8504S-03A.
Operating voltage: 2.0 to 4.0 V. Rated voltage: 3.6 V. Current consumption: max. 100 mA. Frequency: 2730 Hz. Sound pressure: min. 87 dB(A). DC resistance 15 ohm. Operating temperatures: –40 to +85 °C. Color: black. Weight: 1.0 g.
Type: BME8504S–03A, buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Impedance | 15 Ω | |
| Sound pressure level | 87 db | |
| Resonance frequency | 2730 Hz | |
| Version | SMD signal transmitter | |
| Voltage | 3.6 VDC | |
| Rated current | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
