BME8503SA | GREWUS
SMD signal transmitter, 18 Ω, 85 dB, 3 VDC, 80 mA, white, BME8503SA
Order No.: 36M368
EAN: 4099891541736
MPN:
BME8503SA
Unit Price (€ / pc.)
1.9159 € *
Available: 1,661 pcs.
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9159 €
25 pcs.
1.5946 €
100 pcs.
1.4518 €
250 pcs.
1.3685 €
1000 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale

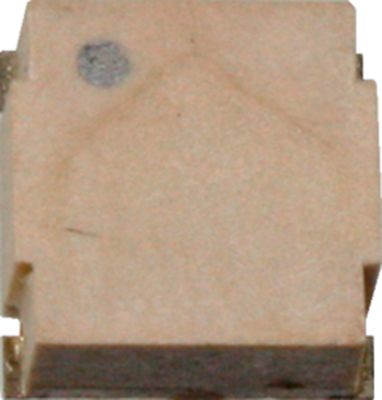

SMD buzzers, type GREWUS BME8503SA.
Operating voltage: 2.0 to 5.0 V. Rated voltage: 3.0 V. Current consumption: max. 80 mA. Frequency: 2730 Hz. Sound pressure: min. 85 dB(A). DC resistance 18 ohm. Operating temperatures: –40 to +85 °C. Color: white. Weight: 1.0 g.
Type: BME8503SA, buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD signal transmitter | |
| Impedance | 18 Ω | |
| Sound pressure level | 85 db | |
| Voltage | 3 VDC | |
| Rated current | 80 mA | |
| Colour | white | |
| Resonance frequency | 2730 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
