BME1305S-01A | GREWUS
SMD signal transmitter, 80 Ω, 85 dB, 5 VDC, 40 mA, black, BME1305S-01A
Order No.: 36M342
EAN: 4099891541620
MPN:
BME1305S-01A
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 20 Weeks

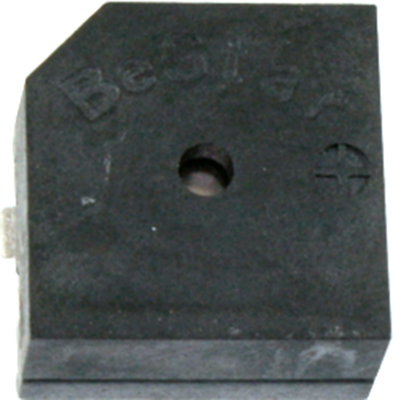

SMD buzzers, type GREWUS BME1305S-01A.
Operating voltage: 4.0 to 7.0 V. Rated voltage: 5.0 V. Current consumption: max. 40 mA. Frequency: 2400 Hz. Sound pressure: min. 85 dB(A). Impedance: 80 ohm. DC resistance: 45 ohm. Operating temperatures: –40 to +85 °C. Color: black. Weight: 2.0 g.
Type: BME1305S–01A, buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD signal transmitter | |
| Impedance | 80 Ω | |
| Sound pressure level | 85 db | |
| Voltage | 5 VDC | |
| Rated current | 40 mA | |
| Colour | black | |
| Resonance frequency | 2400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
