BME0603SB | GREWUS
SMD signal transmitter, 10 Ω, 87 dB, 3 VDC, 120 mA, black, BME0603SB
Order No.: 36M363
EAN: 4099891541712
MPN:
BME0603SB
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: On Request

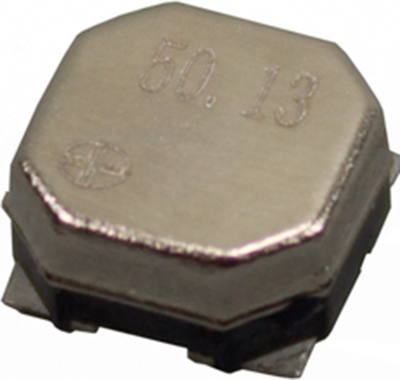

SMD buzzers, type GREWUS BME0603SB.
Operating voltage: 2.5 to 4.5 V. Rated voltage: 3.0 V. Current consumption: max. 120 mA. Frequency: 3100 Hz. Sound pressure level: min. 87 dB(A). DC resistance 10 ohm. Operating temperatures: –40 to +85 °C. Color: black. Dimensions: 5.3 x 5.3 x 2.5 mm. Weight: 0.6 g.
Type: BME0603SB, buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Impedance | 10 Ω | |
| Sound pressure level | 87 db | |
| Resonance frequency | 3100 Hz | |
| Version | SMD signal transmitter | |
| Voltage | 3 VDC | |
| Rated current | 120 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
