GMH3750-GE | Greisinger

Greisinger temperature measuring device, GMH3750-GE, 600335

Order No.: 21K8672
EAN: 4099891461997
MPN:
GMH3750-GE
600335
GMH3750-GE Greisinger Thermometers and Displays
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Senseca 4-wire high-precision thermometer/data logger, PRO 115, 486651
Senseca 4-wire high-precision thermometer/data logger, PRO 115, 486651
Order No.: 22K1015
Manufacturer: Senseca
per pc. 374.85 € *

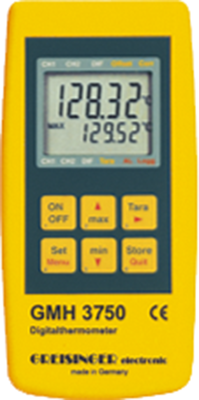

GMH 3750, thermometer with additional functions

high-precision measuring and reference device for all calibration tasks and all Pt100 4-wire probes with 4-pole mini DIN plug. For highest tolerance of max. ±0.03 °C and a resolution of 0.01 °C. With freely scalable analog output from 0 to 1.0 V or serial port. Zero point/slope input, memory for min/max value, Hold function. Two additional integrated data logger functions, optical and acoustic min/max alarm, user-specific characteristic probe curve (50 interpolation points), real-time clock with day, month and year.

Measuring range: - 199.99 °C to +199.99 °C or - 200.0 °C to +850 °C. Two 4 1/2-digit LCDs, 12.4 or 7.0 mm high. Outlet: 3-pole, 3.5 mm phono jack, configurable as serial port or analog output. Operating temperatures: - 25 °C to +50 °C. Dimensions: H 142, W 71, D 26 mm.

Technical specifications
Filter Property Value
Product type temperature measuring device
Resolution 0.01 °C
min. operating temperature -200 °C
max. operating temperature 850 °C
Response Time 1 s
Accuracy ±0.03 %
Logistics
Property Value
Country of origin DE
Customs tariff number 90258040
Compliance
Property Value
Date of RoHS guidelines 6/8/11
RoHS conform Yes
SVHC free Yes
