GMH3710-GE | Greisinger

Greisinger temperature measuring device, GMH3710-GE, 600332

Order No.: 21K8670
EAN: 4099891461980
MPN:
GMH3710-GE
600332
GMH3710-GE Greisinger Thermometers and Displays

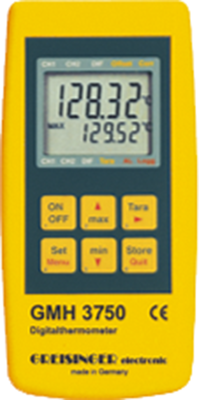

Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Senseca 4 ladder high-precision thermometer, PRO 111, 486650
Senseca 4 ladder high-precision thermometer, PRO 111, 486650
Order No.: 22K1014
Manufacturer: Senseca
per pc. 273.70 € *

GMH 3710, standard thermometer

high-precision measuring and reference device for all calibration tasks and all Pt100 4-wire probes with 4-pole mini DIN plug. For highest tolerance of max. ±0.03 °C and a resolution of 0.01 °C. With freely scalable analog output from 0 to 1.0 V or serial port. Zero point/slope input, memory for min/max value, Hold function.

Measuring range: - 199.99 °C to +199.99 °C or - 200.0 °C to +850 °C. Two 4 1/2-digit LCDs, 12.4 or 7.0 mm high. Outlet: 3-pole, 3.5 mm phono jack, configurable as serial port or analog output. Operating temperatures: - 25 °C to +50 °C. Dimensions: H 142, W 71, D 26 mm.

Technical specifications
Filter Property Value
Response Time 1 s
Accuracy ±0.03 %
max. operating temperature 850 °C
min. operating temperature -200 °C
Product type temperature measuring device
Resolution 0.01 °C
Logistics
Property Value
Country of origin DE
Customs tariff number 90258040
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
