GIA2448-00-GE | Greisinger

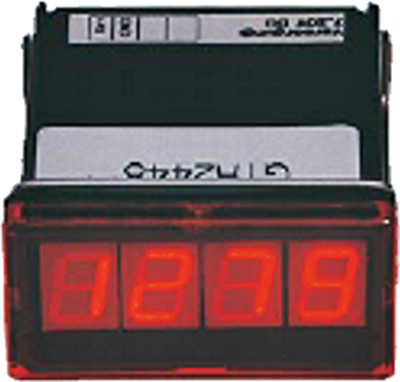

Digital display instrument, GIA2448-00-GE
for voltage and current, with 3 1/2-digit LED display, 10 mm height, for auto-ranging
Measuring ranges (adjustable by means of solder bridges): 0 to 20 V, 0 to 10 V, 0 to 2.0 V, 0 to 1.0 V, 0 to 200 mV, 0 to 20 mA and 4.0 to 20 mA
Display range: - 1999 to +1999 digits
Decimal point: by means of solder bridge
Tolerance: ±0.2%
Sampling rate: 3/s
Operating mode: adjustable by means of solder bridge 8.0 to 20 VDC or 18 to 29 VDC or 8.0 to 20 VAC or 18 to 27 VAC
Current consumption: max. 20 mA
Housing: Noryl
Dimensions: bezel 24 x 48 mm
Mounting depth with screw/tab terminals: approx. 65 mm. Mounting cutout 21.7 x 45.0 mm. Front-panel thickness 1.0 to 10 mm
Mounting: with VA spring clip
Degree of protection: IP 54 at the front, IP 65 with separately available pair of O-rings.
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP50 | |
| max. Voltage | 20 V | |
| Height of cut-out | 21.7 mm | |
| Frequency measurement | No | |
| Assembly | built-in mounting | |
| Width of cut-out | 45 mm | |
| Max. current | 20 mA | |
| Installation depth | 65 mm | |
| Voltage | 8-20 VDC | |
| Control Output | No |
| Property | Value |
|---|---|
| Customs tariff number | 90258040 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
