GEWAS191-N-GE | Greisinger

Leakage water detector without machine shutdown, 220-240 VAC, 0 to 50 °C, black, GEWAS191-N-GE

Order No.: 28M160
EAN: 4099891544263
MPN:
GEWAS191-N-GE
601742
GEWAS191-N-GE Greisinger Detectors, Controller

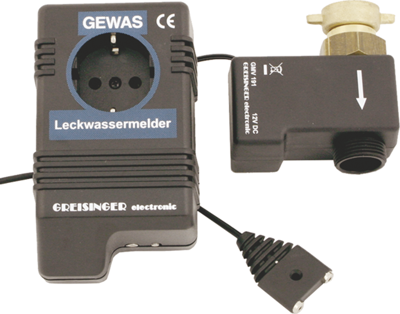

Image may differ
Unit Price (€ / pc.)
173.2640 € *
Available: 5 pcs.
Total Price:
173.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
173.2640 €

Leakage water alarms, Greisinger GEWAS 191.

For monitoring equipment and machinery with water connection, shuts down the water supply when an alarm is triggered (as soon as a 0.5 mm water film is detected)

Control output 191 N/191 AN: line voltage is always active at the outlet/via appliance outlet

Power supply: 220/240 V/50/60 Hz

Power consumption: 3.0 VA

Switching current type 191 AN: max. 16 A

Operating pressure of the solenoid valve: max. 6.0 bar servo controlled (differential pressure between the inlet/outlet min. 0.5 bar)

Operating conditions: 0 to +50 °C, 0 to 90 % rF (no dewing)

Dimensions control unit/solenoid valve: L126/82, W 79/52, H 54/41 mm. Supplied with control unit, solenoid valve, filter seal, water sensor GWF-1S/2m, operating instructions.

Technical specifications
Filter Property Value
Colour black
Degree of protection (IP) IP20
Version leakage water detector without machine shutdown
Voltage 220-240 VAC
min. operating temperature 0 °C
max. operating temperature 50 °C
Logistics
Property Value
Country of origin DE
Customs tariff number 90268020
Compliance
Property Value
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
