GMH5150-GE | Greisinger

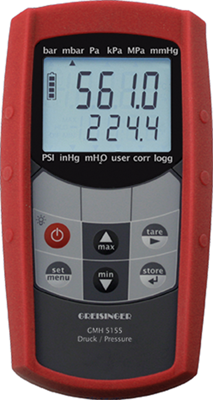

Greisinger pressure gauge, GMH5150-GE, 600031
Pressure meters, type Greisinger GMH 51.
For mobile applications, MIN/MAX memory, Hold/Auto-Hold, Auto-Off function, battery low and battery status indication, backlight (adjustable ON duration ), user-defined display unit
Display: 4 1/2-digit, backlit
Display range: - 19999 to +19999
Measuring frequency: 4 measurements/s or 1000 measurements/s
Tolerance: ±0.1 % FS
Adjustable mean value filter: 1.0 to 120 s
Degree of protection housing: IP 65/IP 67
Power supply: 2 x AAA batteries (included)
Dimensions: H 160, W 86, T 37 mm
Weight: approx. 250 g. Supplied with battery and protective sleeve.
With one sensor connection, analog output and data logger, type GMH 5150
With leakage test, seal tightness test, air flow rate/volume flow, data logger, MIN/MAX alarm function
| Filter | Property | Value |
|---|---|---|
| Relative Humidity Range | 0 % to 95 % | |
| Resolution | 1 bar | |
| measurement range | -1999 mbar to 1000 bar | |
| Degree of protection (IP) | IP65/IP67 | |
| max. operating temperature | 50 °C | |
| Accuracy | ±0.1 % | |
| min. operating temperature | -25 °C | |
| Version | with 1 sensor connection, analog output and data logger | |
| Product type | pressure gauge |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90262020 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
