GMH3692-GE | Greisinger
Greisinger air oxygen meter, GMH3692-GE, 605919
Order No.: 22K1381
EAN: 4099891465520
MPN:
GMH3692-GE
605919
Unit Price (€ / pc.)
304.045 € *
Standard delivery time from the manufacturer is: 1 Week

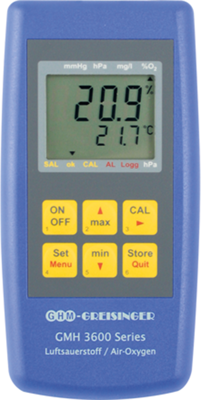

Air oxygen meters, type Greisinger GMH 3692.
Dual display for oxygen and temperature, alarm monitoring with integrated buzzer, MIN/MAX memory and HOLD function, serial interface, automatic ambient air compensation, simple calibration in atmospheric air; Operation: power line and battery mode. Oxygen concentration: 0 to 100 % (gaseous). Oxygen particle pressure: 0 to 1100 hPa. Air pressure: 10 to 1200 hPa. Temperature: –5.0 to +50 °C. Tolerance: oxygen concentration ±0.1% ±1 digit, temperature ±0.1 °C ±1 digit. Dimensions: 142 x 71 x 26 mm. Weight: 160 g. Supplied with battery. Sensors are available on separate order.
Type: GMH 3692, air oxygen meter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Relative Humidity Range | 0 % to 95 % | |
| measurement range | 0 to 100 % O2, 0 to 1100 hPa O2 | |
| Degree of protection (IP) | IP65 | |
| max. operating temperature | 50 °C | |
| Accuracy | ±0.1 % | |
| min. operating temperature | 0 °C | |
| Version | with data logger | |
| Product type | air oxygen meter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90271010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
