G1107-UT-WPD | Greisinger

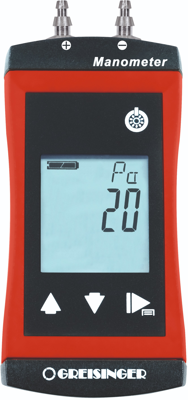

Greisinger fine manometer, G1107-UT-WPD, 480347
Order No.: 19K9885
EAN: 4058175676830
MPN:
G1107-UT-WPD
480347
Unit Price (€ / pc.)
394.485 € *
Standard delivery time from the manufacturer is: On Request
Fine pressure gauge, G1107-UT-WPD, Greisinger
Precision pressure gauge G1107; pressure connection: 2x G1/8 inch port incl. connection for hoses 6x1 mm (4 mm inside) and 8x1 mm (6 mm inside); set option: gauge incl. 1 m hose 6x1 PVC, case GKK 1002, WPD5 calibration certificate; measuring range: -2000 ... +2000 Pa, -20,00 ... +20,00 hPa, -200,0 ... +200,0 hPa; Variant: Greisinger; Working temperature: -20 ... +50 °C; Power supply: 2 x AA batteries
Technical specifications
| Version | 2x 1/8 inch port incl. connection for hoses 6x1 mm (4 mm inside) and 8x1 mm (6 mm inside) | |
| Accuracy | ±0.1 % | |
| measurement range | ±2000 Pa to ±200 hPa | |
| Relative Humidity Range | 0 % to 95 % | |
| Product type | fine manometer | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 50 °C | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Customs tariff number | 90262020 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
