RSNTRA06GNTB | GREATECS
DIP switche, 6 pole, straight, 25 mA/24 VDC, RSNTRA06GNTB
Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 5 Weeks

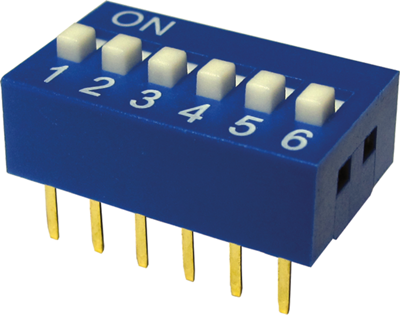

DIP switch, RSNTRA06GNTB, GREATECS
This switch is slide switch of one body type that each pole is parallel and it is constituted by one moving contact and two terminals. The terminal plating by gold gives excellent results when soldering.
Features
- Low contact resistance
- High reliability
- Self-clean on contact area
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 6 pole | |
| Version | DIP switche | |
| Connection | PCB pin | |
| Breaking capacity | 25 mA/24 VDC | |
| Design | straight | |
| contact surface | gold-plated | |
| Actuation | on top |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | JP |
| Original Packaging | Bar with 22 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
