PAV19BMFW1G6N | GREATECS

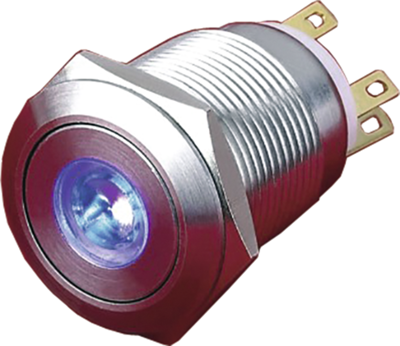

Vandal-proof pushbutton, 1 pole, silver, illuminated (blue), 5 A/250 V, mounting Ø 19 mm, IP65, PAV19BMFW1G6N
Unit Price (€ / pc.)
24.4783 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
979.13 € *
Price list
Quantity
Price per unit*
40 pcs.
24.4783 €
120 pcs.
23.0384 €
200 pcs.
21.5985 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal-resistant illuminated pushbuttons type Greatecs PAV19B.
Robust, with screw connection and high protection against vandalism; Mounting diameter: 19 mm, Switching voltage: 250 VAC, Switching current: 5,0 A, Switching function: Closer, Contact material: Silver alloy, Housing and actuator: Stainless steel, Actuation route: 2,5 mm, Actuating power: 4,0 N, Protection type: IP 65, Vandal protection: IK 09, Operating temperature: -20 bis +55 °C. Table details: Type, colour.
With spot lighting.
Type: PAV19BMFW1G6N, blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 5 A/250 V | |
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Installation diameter | 19 mm | |
| contact surface | silver-plated | |
| Printed | No | |
| Connection | screw connection | |
| Design | round | |
| Protection class | IP65 | |
| Farbe der Beleuchtung | blue | |
| Vandal-proof | Yes | |
| Actuator colour | silver | |
| illuminated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
